Summary

Use this screen to print labels for stocked items in your Stores.

Labels that include barcodes will take those from the Variant; where a label is for a Unique Stock Record, it will display the barcode for that Unique Stock Record instead

Printing Labels

Setup

Labels can be printed either via a dedicated label printer, or via a standard A4 printer.

Dedicated Printer

Labels can be printed via a dedicated STAR printers.

This will require separate setup; please contact Iconography if you have have not purchased a printer.

Standard Printer

Labels will be printed on standard A4 paper; this should be done on pre cut A4 label sheets.

To configure the size of these labels, you should use 'product label layout (A4 sheet)' in Site Settings.

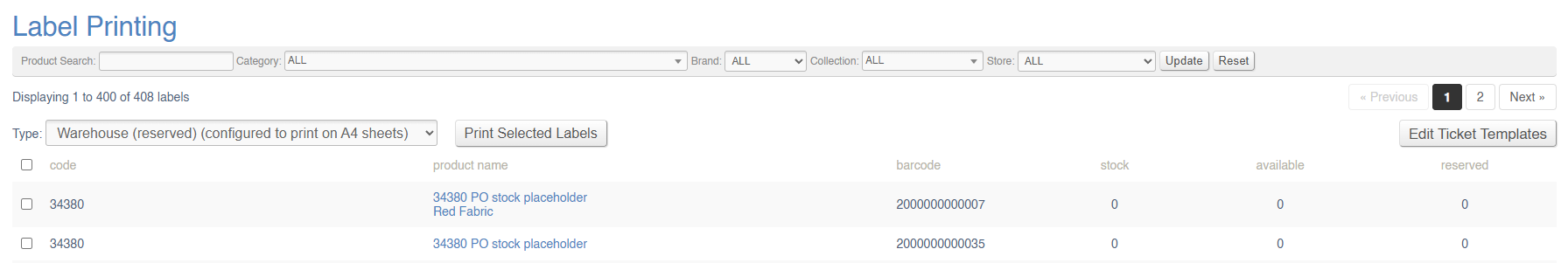

How to Print Labels

Use the filters at the top of the screen to refine your results, and then tick the items for which you would like to print labels.

Be sure to tick the box to include Product Prices if required

Be sure to amend the quantities accordingly.

The quantities will default to the number of stock on hand

Label Types

There are six types of label:

1. Price Labels
2. Warehouse (Reservation) Labels
3. Warehouse (Free Stock) Labels
4. Variant Tickets
5. Product Tickets
6. Collection Tickets

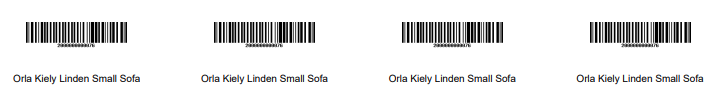

Price Labels

These are small labels, which may also be used as shelf edge labels.

These will come with a barcode, and may optionally show the price.

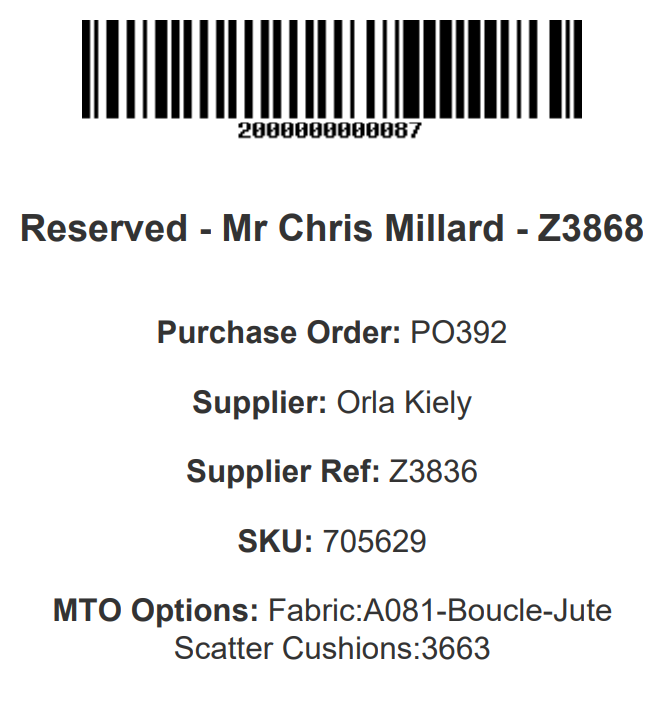

Warehouse (Reservation) Labels

These are larger labels, which will have more detailed information on the unit of stock. These typically include SKU code, details of any Customisations, as well as the Supplier and barcode.

These will also include details of the Sales Order and Customer to which the item is reserved.

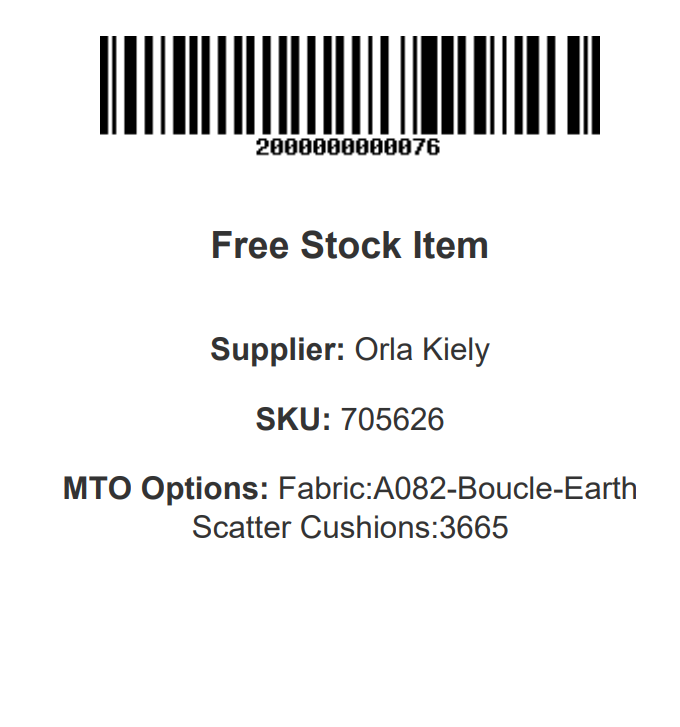

Warehouse (Free Stock) Labels

These are larger labels, which will have more detailed information on the unit of stock. These typically include SKU code, details of any Customisations, as well as the Supplier and barcode.

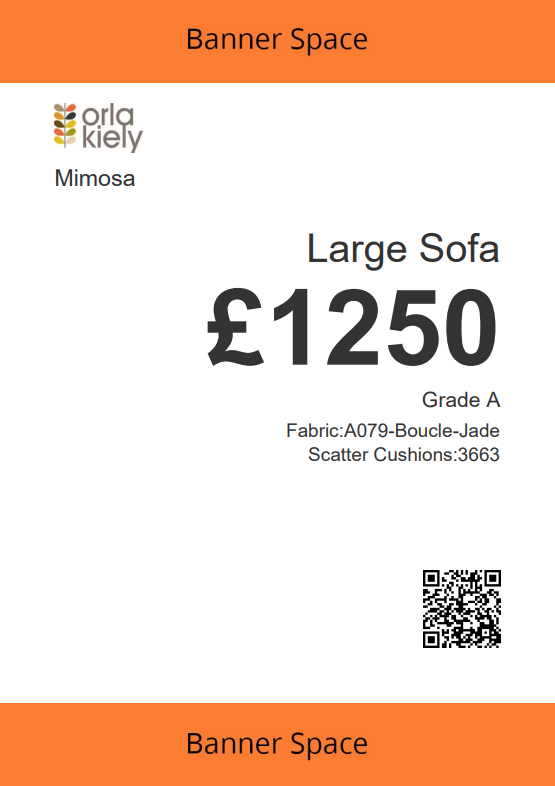

Variant Tickets

This will print a large scale Ticket that is sized to print at A4, A5 or A6 depending on your local printer settings.

This will print a Ticket for a specific Product. If you select multiple Variants from the same Product, they will be printed on separate tickets.

If you select a Variant with a USR, the detail for that USR will be printed instead.

The QR code will open the Product page on your website.

For information on configuring this template, click here.

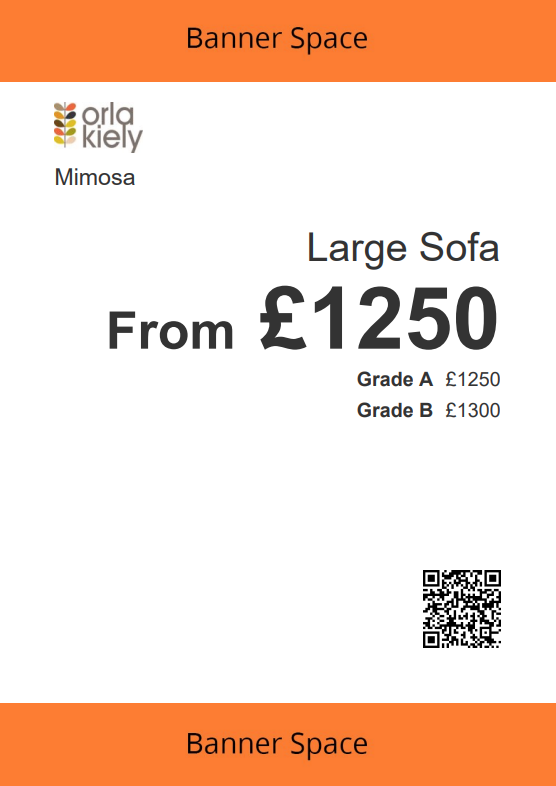

Product Tickets

This will print a large scale Ticket that is sized to print at A4, A5 or A6 depending on your local printer settings.

This will print a Ticket for a specific Product. If you select multiple Variants from the same Product, they will be combined onto a single Ticket.

The QR code will open the Product page on your website.

For information on configuring this template, click here.

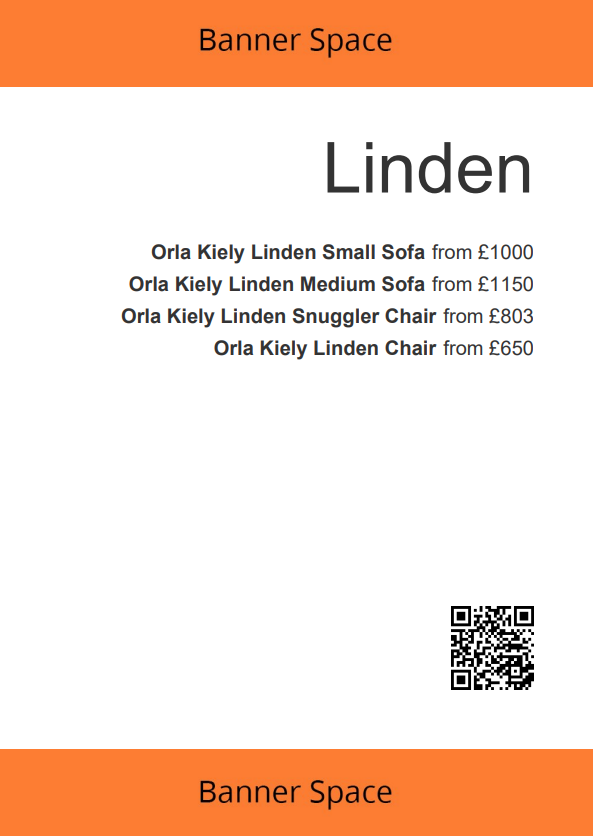

Collection Tickets

This will print a large scale Ticket that is sized to print at A4, A5 or A6 depending on your local printer settings.

If you select multiple items, these will be grouped by Collection.

The QR code will open the Collection page on your website.

For information on configuring this template, click here.
